Data Visualization

Load Packages

### Data wrangling
library(readr)

Warning: package 'readr' was built under R version 4.5.3

library(here)      ### for robust relative file paths

Warning: package 'here' was built under R version 4.5.3

here() starts at C:/Users/hchaney/OneDrive - deltacouncil/Assignments/NCEAS/training_chaney2

library(dplyr)

Attaching package: 'dplyr'

The following objects are masked from 'package:stats':

    filter, lag

The following objects are masked from 'package:base':

    intersect, setdiff, setequal, union

library(tidyr)
library(forcats)   ### tools for working with factors (e.g., reordering)
library(janitor)   ### clean column names

Warning: package 'janitor' was built under R version 4.5.3

Attaching package: 'janitor'

The following objects are masked from 'package:stats':

    chisq.test, fisher.test

### Visualization
library(ggplot2)

### Interactive output
library(plotly)

Warning: package 'plotly' was built under R version 4.5.3

Attaching package: 'plotly'

The following object is masked from 'package:ggplot2':

    last_plot

The following object is masked from 'package:stats':

    filter

The following object is masked from 'package:graphics':

    layout

library(DT)

Warning: package 'DT' was built under R version 4.5.3

library(leaflet)

Warning: package 'leaflet' was built under R version 4.5.3

Load the data

delta_visits_raw<- read_csv("https://tinyurl.com/delta-activities")

Rows: 55 Columns: 13
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr  (4): EcoRestore_approximate_location, Reach, Time_of_Day, notes
dbl  (8): Latitude, Longitude, sm_boat, med_boat, lrg_boat, bank_angler, sci...
date (1): Date

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.

Explore the Data

colnames(delta_visits_raw)

 [1] "EcoRestore_approximate_location" "Reach"
 [3] "Latitude"                        "Longitude"
 [5] "Date"                            "Time_of_Day"
 [7] "sm_boat"                         "med_boat"
 [9] "lrg_boat"                        "bank_angler"
[11] "scientist"                       "cars"
[13] "notes"

glimpse(delta_visits_raw)

Rows: 55
Columns: 13
$ EcoRestore_approximate_location <chr> "Decker Island", "Decker Island", "Dec…
$ Reach                           <chr> "Brannan to Decker Island", "Decker Is…
$ Latitude                        <dbl> 38.10587, 38.10587, 38.08456, 38.08456…
$ Longitude                       <dbl> -121.7064, -121.7064, -121.7204, -121.…
$ Date                            <date> 2017-07-07, 2017-07-07, 2017-07-07, 2…
$ Time_of_Day                     <chr> "unknown", "unknown", "unknown", "unkn…
$ sm_boat                         <dbl> 0, 0, 0, 0, 2, 0, 0, 7, 1, 0, 0, 0, 0,…
$ med_boat                        <dbl> 2, 4, 0, 1, 10, 0, 0, 1, 2, 0, 1, 6, 1…
$ lrg_boat                        <dbl> 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0,…
$ bank_angler                     <dbl> 1, 3, 0, 0, 0, 0, 0, 0, 2, 0, 0, 5, 0,…
$ scientist                       <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,…
$ cars                            <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,…
$ notes                           <chr> "no notes", "no notes", "Nobody or tra…

Clean Up the data

delta_visits <- delta_visits_raw %>% clean_names()
delta_visits

# A tibble: 55 × 13
   eco_restore_approximate_loc…¹ reach latitude longitude date       time_of_day
   <chr>                         <chr>    <dbl>     <dbl> <date>     <chr>
 1 Decker Island                 Bran…     38.1     -122. 2017-07-07 unknown
 2 Decker Island                 Deck…     38.1     -122. 2017-07-07 unknown
 3 Decker Island                 Deck…     38.1     -122. 2017-07-07 unknown
 4 Decker Island                 Deck…     38.1     -122. 2017-09-13 unknown
 5 Decker Island                 Bran…     38.1     -122. 2017-11-07 unknown
 6 Decker Island                 Deck…     38.1     -122. 2017-11-07 unknown
 7 Decker Island                 Deck…     38.1     -122. 2017-11-07 unknown
 8 Decker Island                 Bran…     38.1     -122. 2017-12-08 morning
 9 Decker Island                 Deck…     38.1     -122. 2017-12-08 morning
10 Decker Island                 Deck…     38.1     -122. 2017-12-08 morning
# ℹ 45 more rows
# ℹ abbreviated name: ¹​eco_restore_approximate_location
# ℹ 7 more variables: sm_boat <dbl>, med_boat <dbl>, lrg_boat <dbl>,
#   bank_angler <dbl>, scientist <dbl>, cars <dbl>, notes <chr>

visits_long <- delta_visits %>%
  tidyr::pivot_longer(
    cols = c(sm_boat, med_boat, lrg_boat, bank_angler, scientist, cars),
    names_to = "visitor_type",
    values_to = "quantity"
  ) %>%
  ### shorten the long name:
  dplyr::rename(restore_loc = eco_restore_approximate_location) %>%
  ### drop the notes column:
  dplyr::select(-notes)

glimpse(visits_long)

Rows: 330
Columns: 8
$ restore_loc  <chr> "Decker Island", "Decker Island", "Decker Island", "Decke…
$ reach        <chr> "Brannan to Decker Island", "Brannan to Decker Island", "…
$ latitude     <dbl> 38.10587, 38.10587, 38.10587, 38.10587, 38.10587, 38.1058…
$ longitude    <dbl> -121.7064, -121.7064, -121.7064, -121.7064, -121.7064, -1…
$ date         <date> 2017-07-07, 2017-07-07, 2017-07-07, 2017-07-07, 2017-07-…
$ time_of_day  <chr> "unknown", "unknown", "unknown", "unknown", "unknown", "u…
$ visitor_type <chr> "sm_boat", "med_boat", "lrg_boat", "bank_angler", "scient…
$ quantity     <dbl> 0, 2, 0, 1, 0, 0, 0, 4, 0, 3, 0, 0, 0, 0, 0, 0, 0, 0, 0, …

daily_visits_loc <- visits_long %>%
    dplyr::group_by(restore_loc, date, visitor_type) %>%
    dplyr::summarize(daily_visits = sum(quantity), .groups = 'drop')

glimpse(daily_visits_loc)

Rows: 144
Columns: 4
$ restore_loc  <chr> "Decker Island", "Decker Island", "Decker Island", "Decke…
$ date         <date> 2017-07-07, 2017-07-07, 2017-07-07, 2017-07-07, 2017-07-…
$ visitor_type <chr> "bank_angler", "cars", "lrg_boat", "med_boat", "scientist…
$ daily_visits <dbl> 4, 0, 0, 6, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 10, 0, 2, 2,…

Make some plots

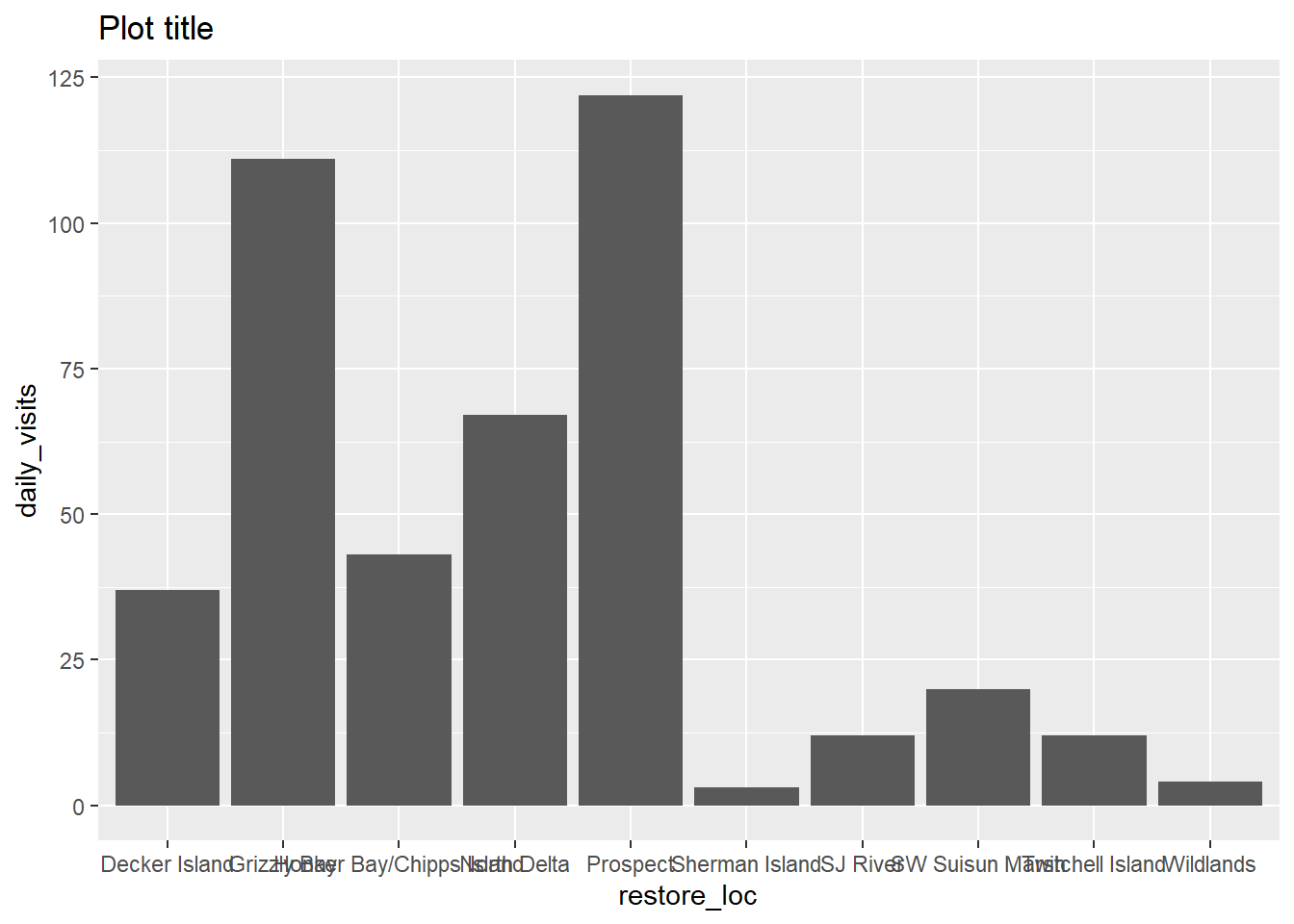

daily_visits_loc %>% ggplot(aes(x = restore_loc, y = daily_visits)) +
  geom_col() +
  labs(title = 'Plot title')

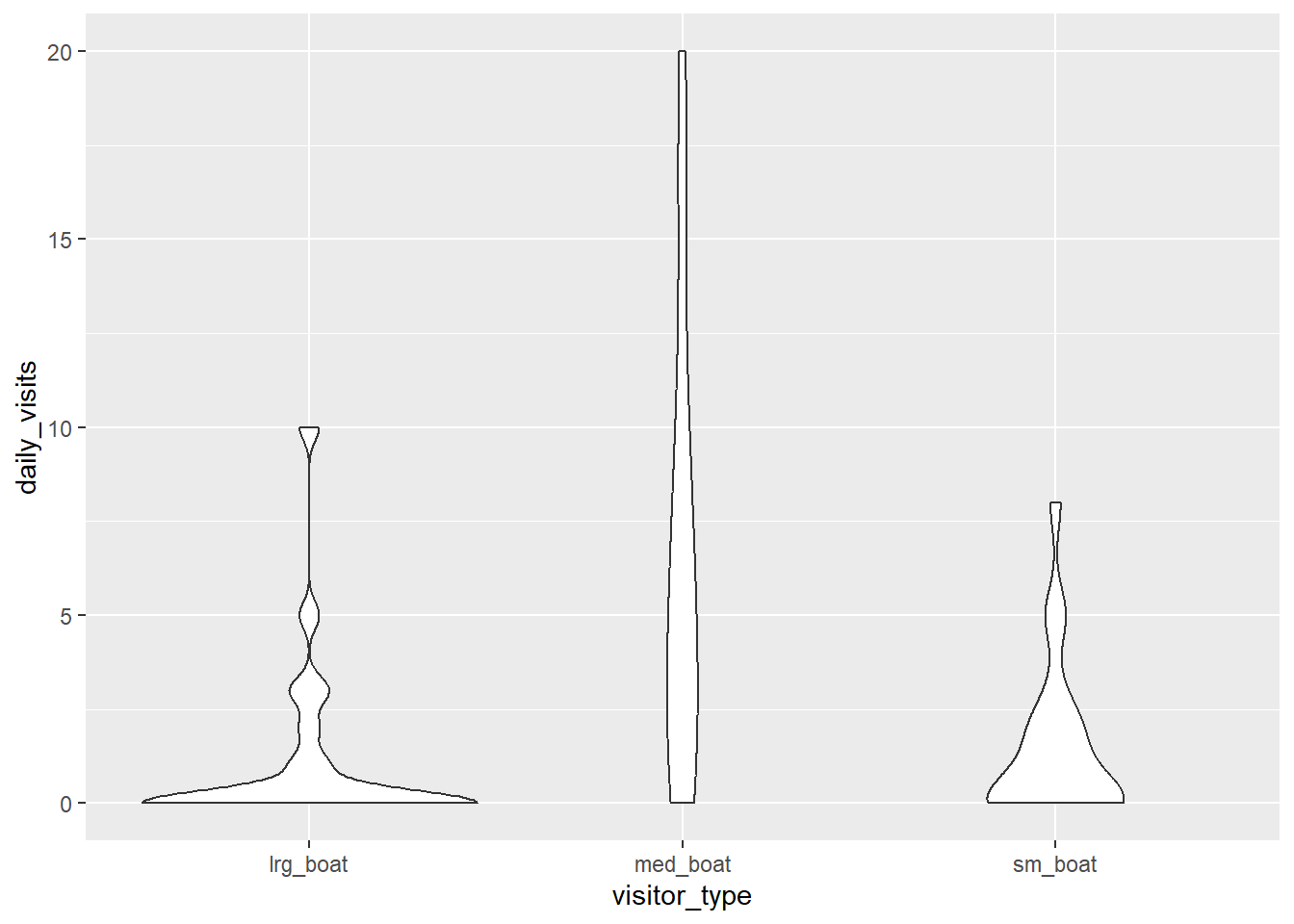

daily_visits_loc %>%
    filter(daily_visits < 30,
           visitor_type %in% c("sm_boat", "med_boat", "lrg_boat")) %>%
    ggplot(aes(x = visitor_type, y = daily_visits)) +
    geom_violin()

Setting the coloring

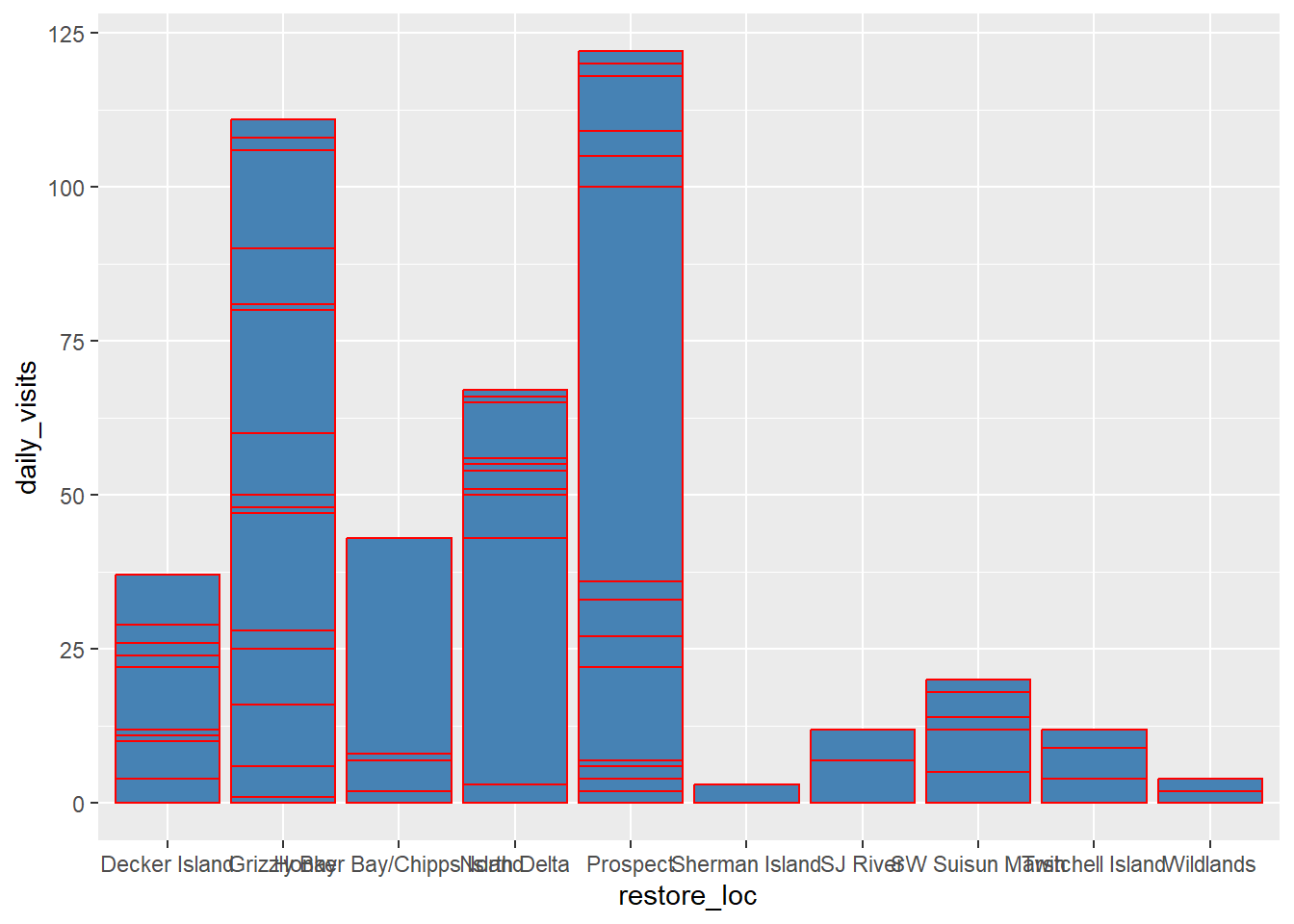

Fixed Data

ggplot(data = daily_visits_loc,
       aes(x = restore_loc, y = daily_visits)) +
  geom_col(color = 'red',
           fill = "steelblue")

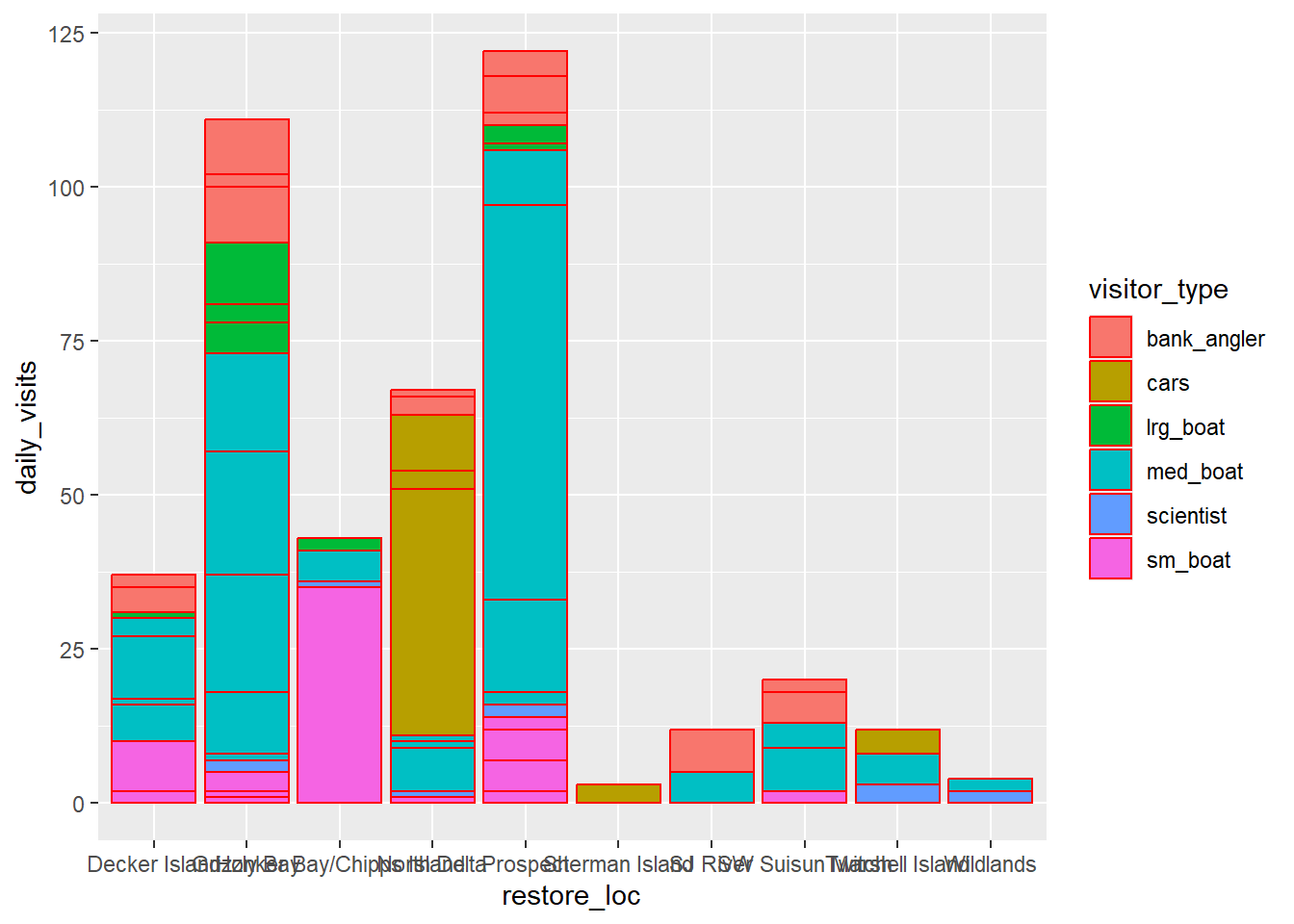

Color assigned by data

ggplot(data = daily_visits_loc,
       aes(x = restore_loc, y = daily_visits)) +
  geom_col(aes(fill = visitor_type),
           color = 'red')

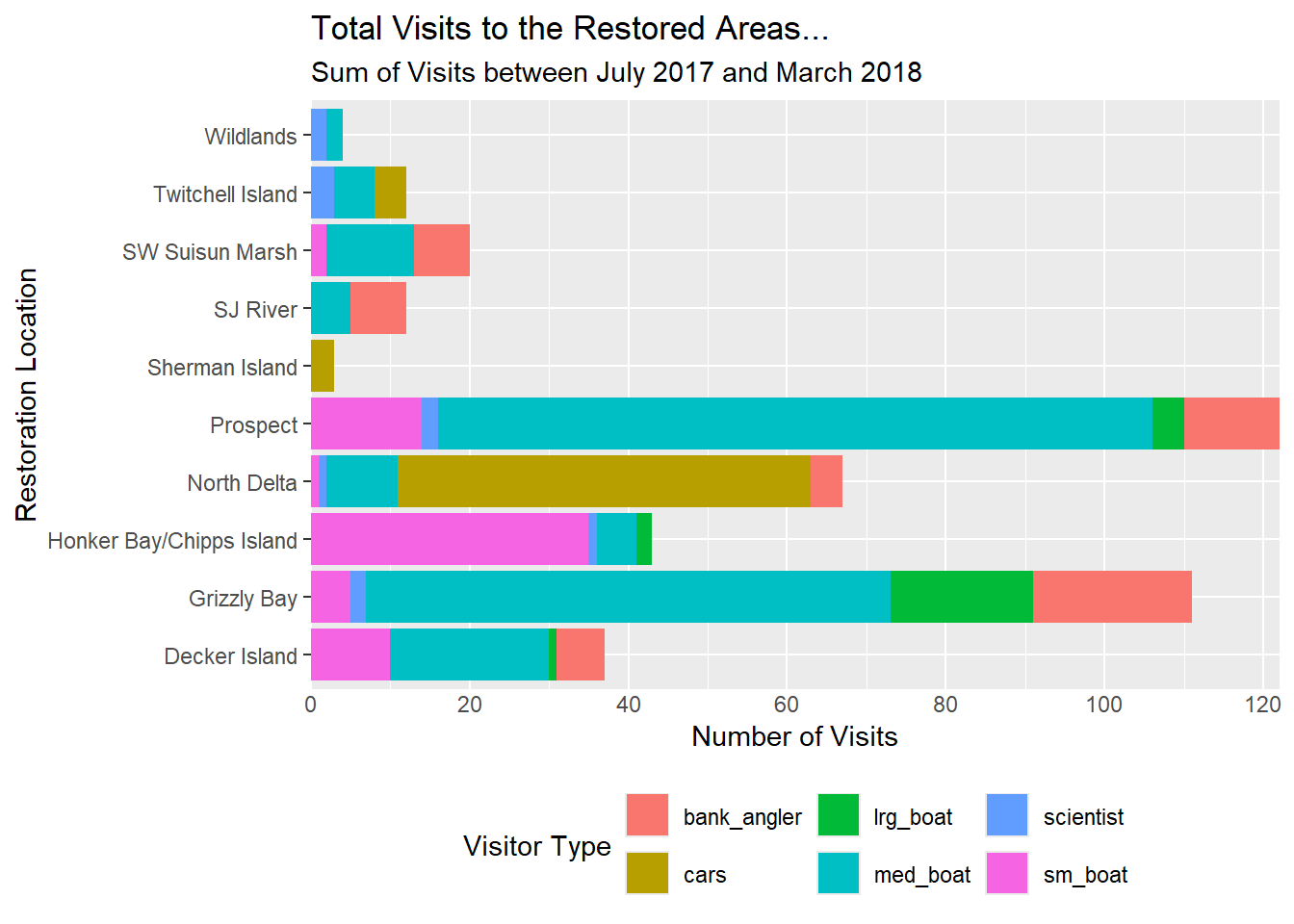

daily_visits_loc %>% ggplot(aes( y= restore_loc, x= daily_visits, fill= visitor_type)) + geom_col() +
    labs(x= "Number of Visits",
    y= "Restoration Location",
    fill = "Visitor Type",
    title = "Total Visits to the Restored Areas...",
    subtitle= "Sum of Visits between July 2017 and March 2018"
    ) +
        scale_x_continuous(breaks = seq(0, 120, 20), expand = c(0,0)) + theme (legend.position = "bottom", axis.ticks.x = element_blank()
        )

Theme!

my_theme <- function(size = 14) {
    theme_minimal(base_size = size) +
    theme(legend.position = "bottom",
          axis.ticks.y = element_line(color = "red", size = 0.5))
}

adding daily visit total

daily_visits_totals <- daily_visits_loc %>%
  group_by(restore_loc) %>%
  mutate(total = sum(daily_visits)) %>%
  ungroup() %>%
  mutate(restore_loc = fct_reorder(restore_loc, desc(total)))

unique(daily_visits_totals$restore_loc)

 [1] Decker Island            Grizzly Bay              Honker Bay/Chipps Island
 [4] North Delta              Prospect                 SJ River
 [7] SW Suisun Marsh          Sherman Island           Twitchell Island
[10] Wildlands
10 Levels: Prospect Grizzly Bay North Delta ... Sherman Island

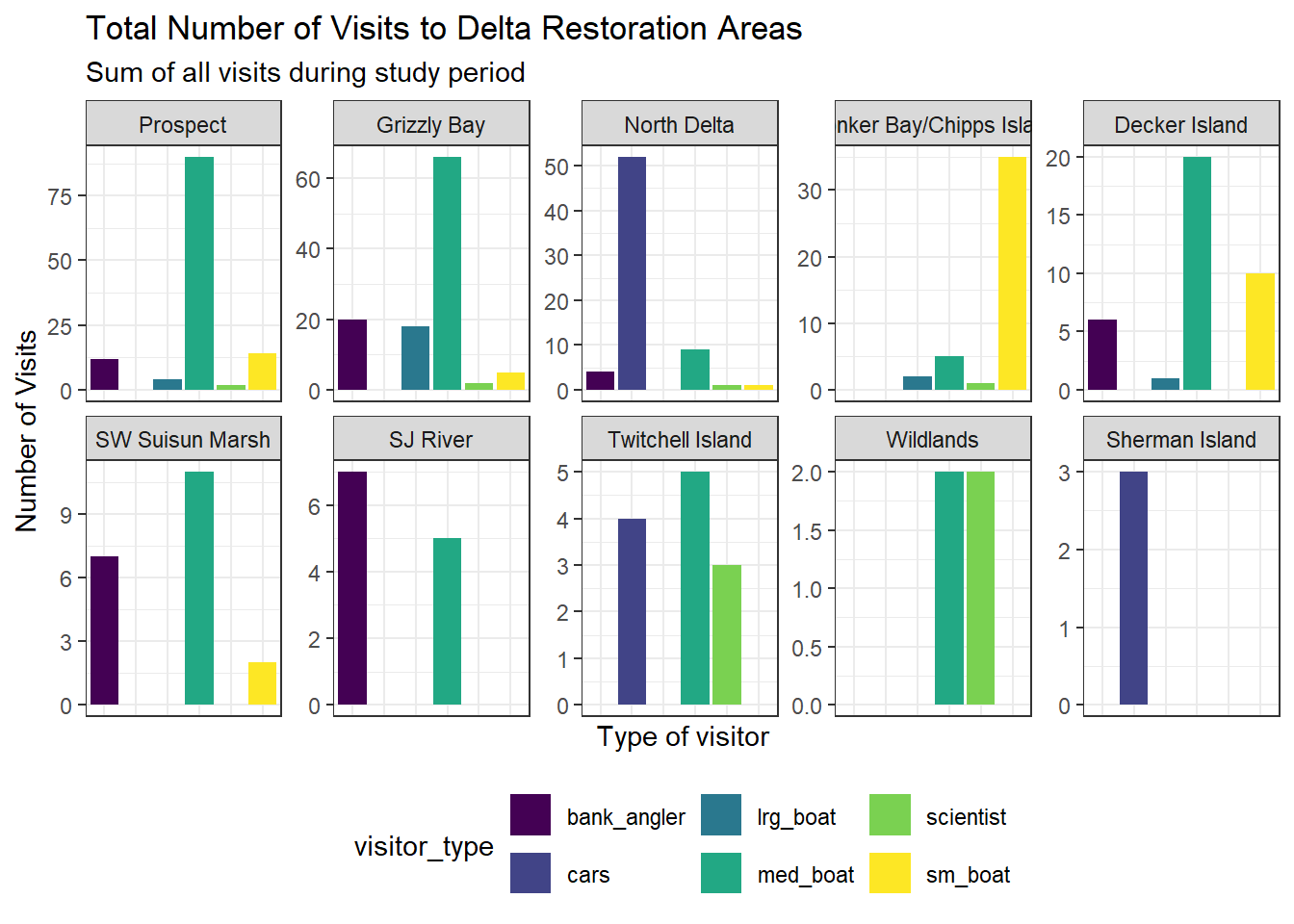

facet_plot <- ggplot(data = daily_visits_totals,
       aes(x = visitor_type, y = daily_visits,
           fill = visitor_type)) +
    geom_col() +
    facet_wrap(~restore_loc,
               scales = "free_y",
               ncol   = 5,
               nrow   = 2) +
    scale_fill_viridis_d() +
    labs(x        = "Type of visitor",
         y        = "Number of Visits",
         title    = "Total Number of Visits to Delta Restoration Areas",
         subtitle = "Sum of all visits during study period") +
    theme_bw() +
    theme(legend.position = "bottom",
          axis.ticks.x    = element_blank(),
          axis.text.x     = element_blank())

facet_plot

GGPLOTLY

ggplotly(facet_plot, tooltip = c('x', 'y'))

Show an interactive table

datatable(delta_visits)

Show an interactive map

restoration_sites<- delta_visits %>%
    clean_names() %>%
    distinct(restore_loc= eco_restore_approximate_location, latitude, longitude) %>%
    drop_na(latitude, longitude)
restoration_sites

# A tibble: 31 × 3
   restore_loc     latitude longitude
   <chr>              <dbl>     <dbl>
 1 Decker Island       38.1     -122.
 2 Decker Island       38.1     -122.
 3 SW Suisun Marsh     38.2     -122.
 4 SW Suisun Marsh     38.1     -122.
 5 Grizzly Bay         38.1     -122.
 6 Grizzly Bay         38.1     -122.
 7 Grizzly Bay         38.0     -122.
 8 Grizzly Bay         38.1     -122.
 9 Grizzly Bay         38.0     -122.
10 Grizzly Bay         38.0     -122.
# ℹ 21 more rows

leaflet(restoration_sites) %>%
    addTiles() %>%
    addMarkers(lng= ~longitude,
    lat=~latitude)
